Exterior space (Courtyard)

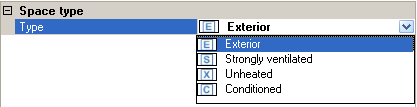

To create an Exterior space in a building block set the space type to Exterior.

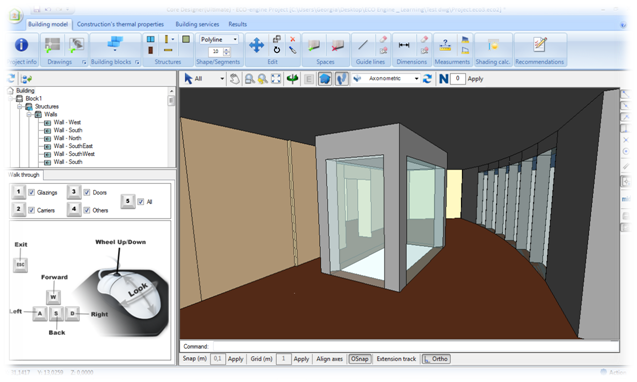

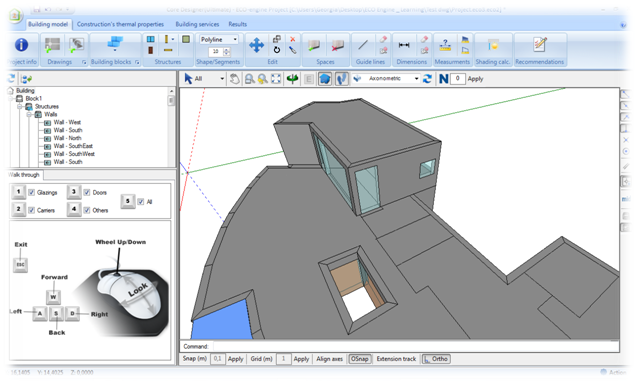

In this way you can create courtyards.
