Rectangle

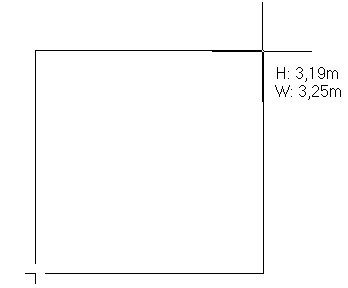

The rectangle shape is used commonly when drawing rectangle shapes of openings on a wall view. To draw a rectangle pick two points the lower left and the upper right or the upper left and lower right points of the rectangle.
